Message Stats

Message Stats pipeline can be used to request and retrieve a list of messages sent by CleverTap. For example, you can this API to get a report of how many in-app messages and push notifications were sent to users in the past week. Read more about this here

Configuring the Credentials

Select the account credentials which has access to relevant CleverTap data from the dropdown menu & Click Next

Credentials not listed in dropdown ?: Click on + Add New for adding new credentials

All accounts which your credentials have access to should be available here. If they are not, please check the credentials selected / configured by you.

Data Pipelines Details

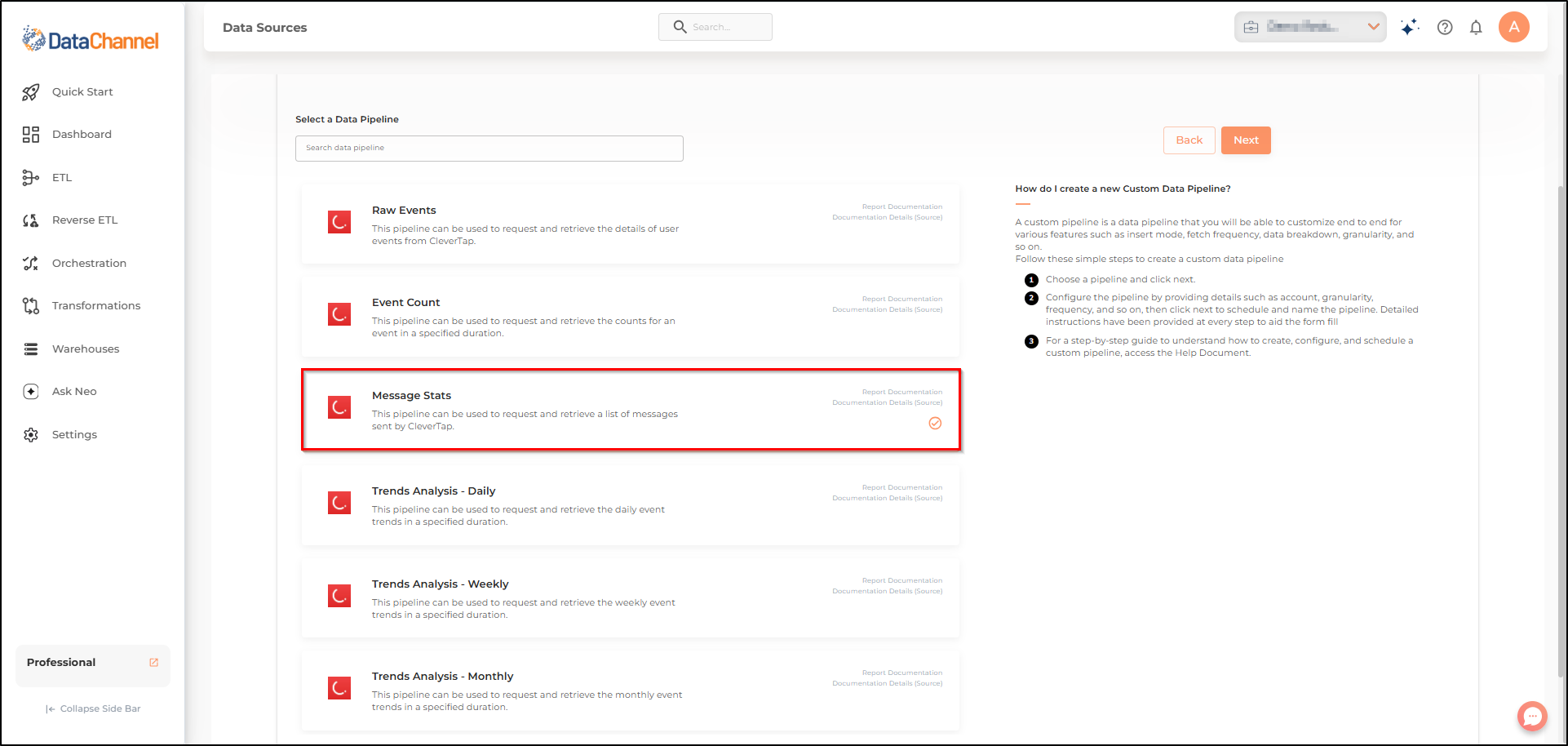

Data Pipeline: Select Message Stats from the dropdown

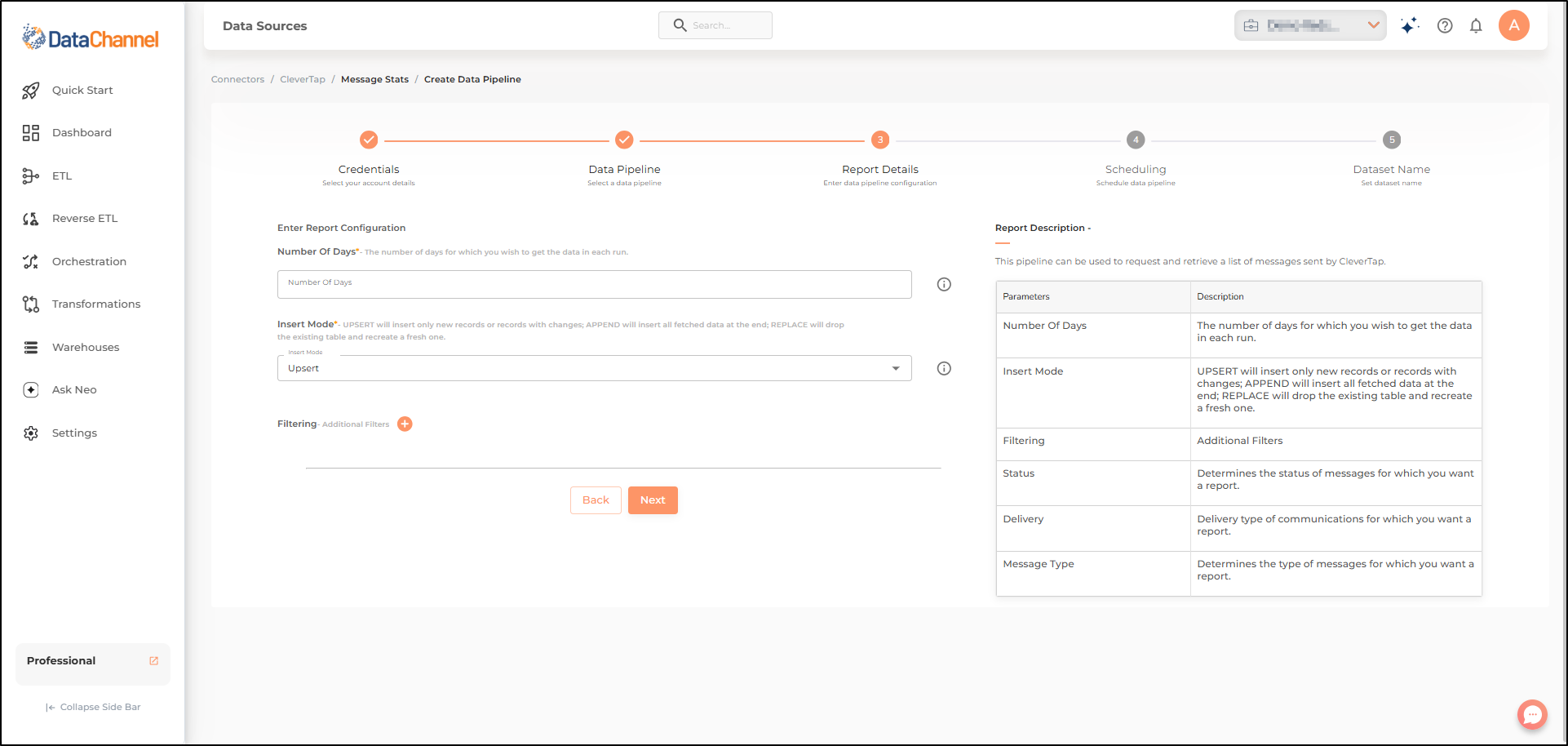

Setting Parameters

Parameter Description Values

Parameter	Description	Values
No of Days	*Required* Number of days for which you wish to get the data in each run.	Integer value (Recommended value 7)
Insert Mode	*Required* This refers to the manner in which data will get updated in the data warehouse, with 'Delete' selected, the data will be upserted (only new records or records with changes) and with 'Append' selected, all data fetched will be inserted. Selecting 'Replace' will ensure the table is dropped and recreated with fresh data on each run. Recommended to use "Upsert" option unless there is a specific requirement.	`Upsert`, `Append`, `Replace` *Default Value:* UPSERT

No of Days

Required

Number of days for which you wish to get the data in each run.

Integer value (Recommended value 7)

Insert Mode

Required

This refers to the manner in which data will get updated in the data warehouse, with 'Delete' selected, the data will be upserted (only new records or records with changes) and with 'Append' selected, all data fetched will be inserted. Selecting 'Replace' will ensure the table is dropped and recreated with fresh data on each run. Recommended to use "Upsert" option unless there is a specific requirement.

Upsert, Append, Replace

Default Value: UPSERT

Filtering

Set these conditions according to your requirements. If not set, all the data will be returned. Click on + Add New for setting up a new filter. Available filters are as under:-

Filter	Description	Values
Status	*Optional* Determines the status of messages for which you want a report.	{running, stopped}
Delivery	*Optional* Delivery type of communications for which you want a report.	{inaction, action}
Message Type	*Optional* Determines the type of messages for which you want a report.	{single, ab}

Filter

Description

Values

Status

Optional

Determines the status of messages for which you want a report.

{running, stopped}

Delivery

Optional

Delivery type of communications for which you want a report.

{inaction, action}

Message Type

Optional

Determines the type of messages for which you want a report.

{single, ab}

Datapipeline Scheduling

Scheduling specifies the frequency with which data will get updated in the data warehouse. You can choose between Manual Run, Normal Scheduling or Advance Scheduling.

Manual Run: If scheduling is not required, you can use the toggle to run the pipeline manually.
Normal Scheduling: Use the dropdown to select an interval-based hourly, monthly, weekly, or daily frequency.
Advance Scheduling: Set schedules fine-grained at the level of Months, Days, Hours, and Minutes.

Detailed explanation on scheduling of pipelines can be found here

Dataset & Name

Dataset Name: Key in the Dataset Name(also serves as the table name in your data warehouse).Keep in mind, that the name should be unique across the account and the data source. Special characters (except underscore _) and blank spaces are not allowed. It is best to follow a consistent naming scheme for future search to locate the tables.
Dataset Description: Enter a short description (optional) describing the dataset being fetched by this particular pipeline.
Notifications: Choose the events for which you’d like to be notified: whether "ERROR ONLY" or "ERROR AND SUCCESS".

Once you have finished click on Finish to save it. Read more about naming and saving your pipelines including the option to save them as templates here
